700L Crawler Dozer Products
| Part Number | Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions |
List Price DS25 | |
|---|---|---|---|---|---|---|---|
| "AT & BYT" part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | |||||||
| Limb Riser (Sweeps) | |||||||

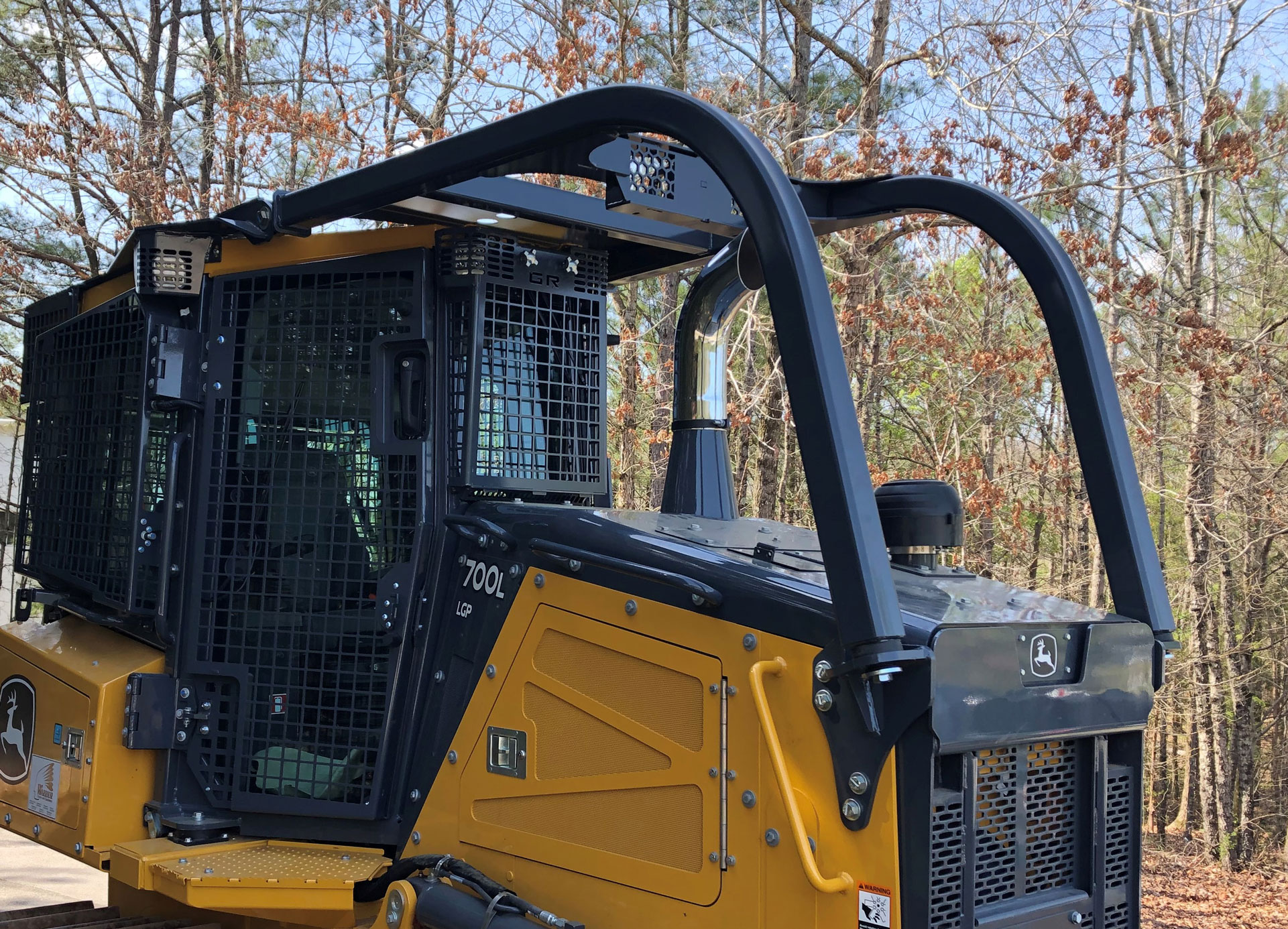

| 706276 | Limb Riser, Arched, Canopy & Cab | 700 | 566 | 4 |  | Login To See Price | Login To Add To Quote |
| Operator Rear Screen | |||||||

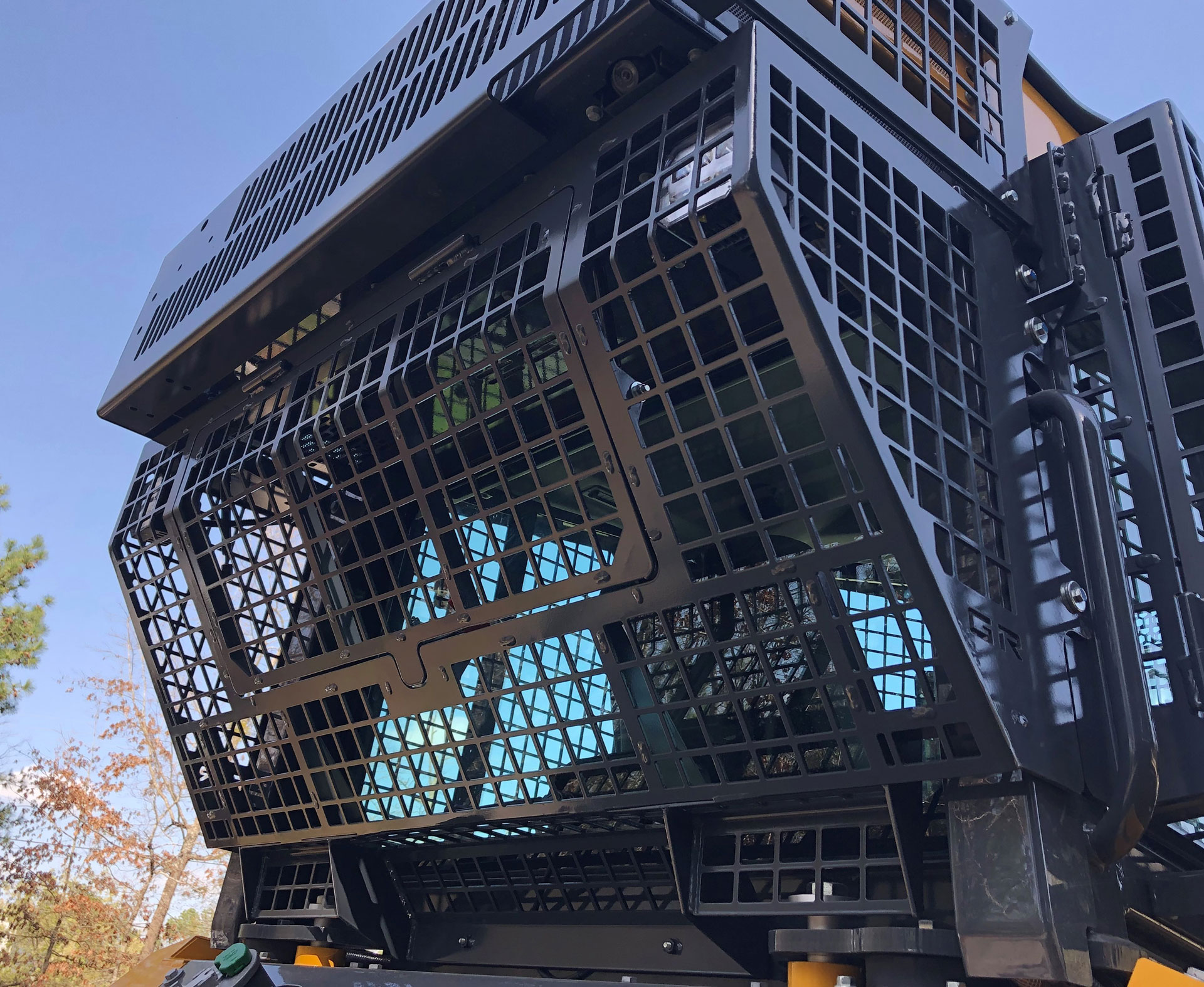

| 706251 | Rear Screen, Cab Notes: Includes Hinges and Slam Latch System Tested to ISO 8084 Standard |
700 | 120 | 1 | | Login To See Price | Login To Add To Quote |
| Operator Side Screens | |||||||
| 706531 | Side Screens, Cab Notes: Includes Hinges and Slam Latch System Tested to ISO 8084 Standard |
700 | 110 | 3 | | Login To See Price | Login To Add To Quote |
| Operator Doors and Front Screen | |||||||

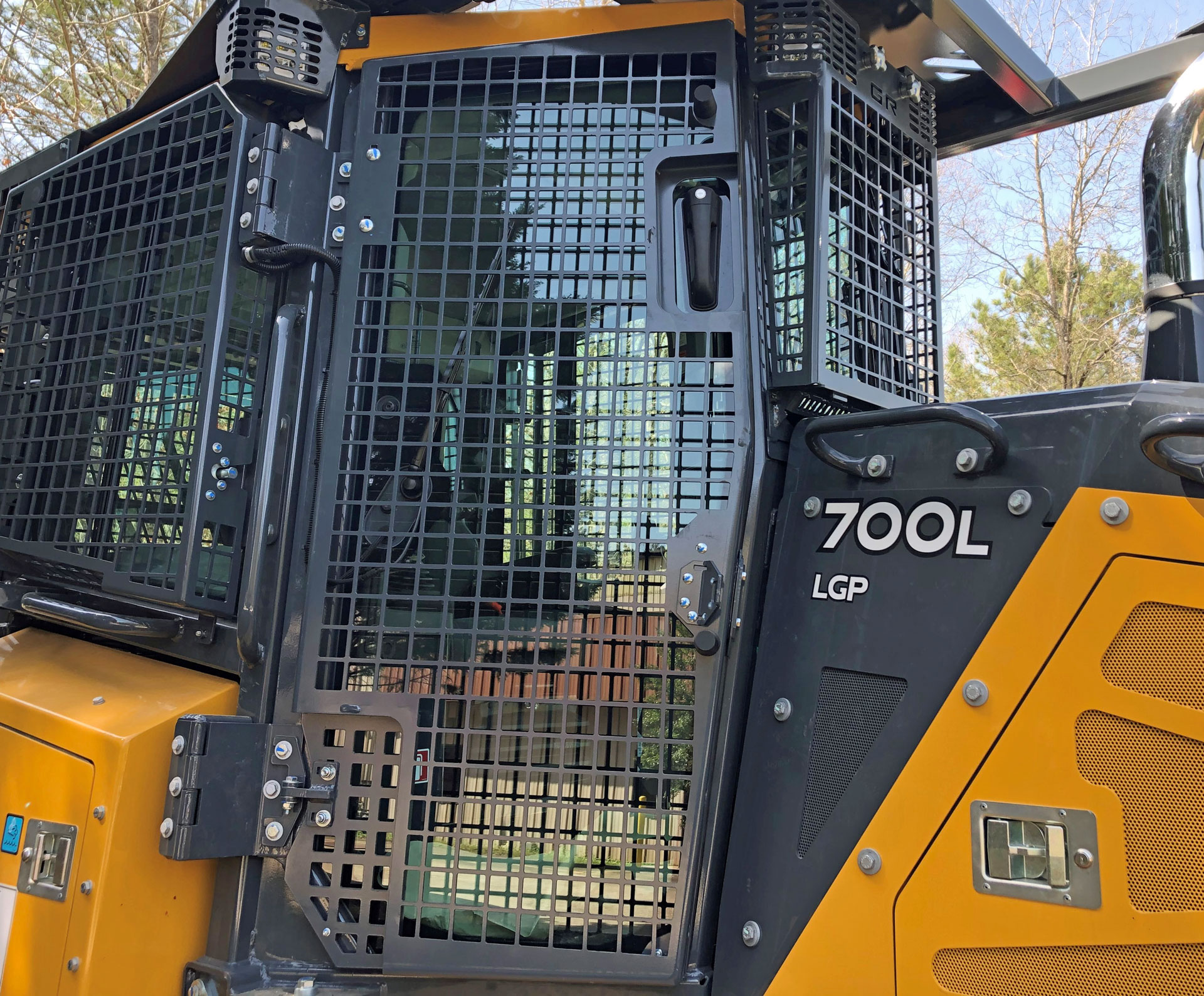

| 706252 | Doors and Front Screen, Cab Notes: Includes Hinges, Slam Latch System and Front Outer Work Light Guards Tested to ISO 8084 Standard |
700 | 200 | 4 | | Login To See Price | Login To Add To Quote |
| Blade Rakes and Brush Guards | |||||||
| 706354 | Blade Rake w/o Brush Guard, 145" Blade Note: Will not work with grade control. |
700 | 1442 | 5 | | Login To See Price | Login To Add To Quote |
| 706343 | Blade Rake w/o Brush Guard, 133" Blade Note: Will not work with grade control. |
700 | 1436 |
5 | | Login To See Price | Login To Add To Quote |
| 706344 | Blade Rake w/o Brush Guard, 127" Blade Note: Will not work with grade control. |
700 | 1441 |
5 | | Login To See Price | Login To Add To Quote |
| 706345 | Blade Rake w/o Brush Guard, 121" Blade Note: Will not work with grade control. |
700 | 1448 | 5 | | Login To See Price | Login To Add To Quote |
| 706245 | Blade Brush Guard, Full Width Note: For 121", 127" and 133" blade, Will not work with grade control |
700 | 250 | 5 | | Login To See Price | Login To Add To Quote |
| Special Application Attachments | |||||||
706316 |
Seal Kit, Hood / Cab Note: Requires G.R. Mfg. Door Screens to be installed. |
700 | 20 | 2 | | Login To See Price | Login To Add To Quote |
| 706540 | A/C Condensor Guard Note: Requires Rear Screen and Will not work with SmartGrade |
700 | 118 | 2 | | Login To See Price | Login To Add To Quote |

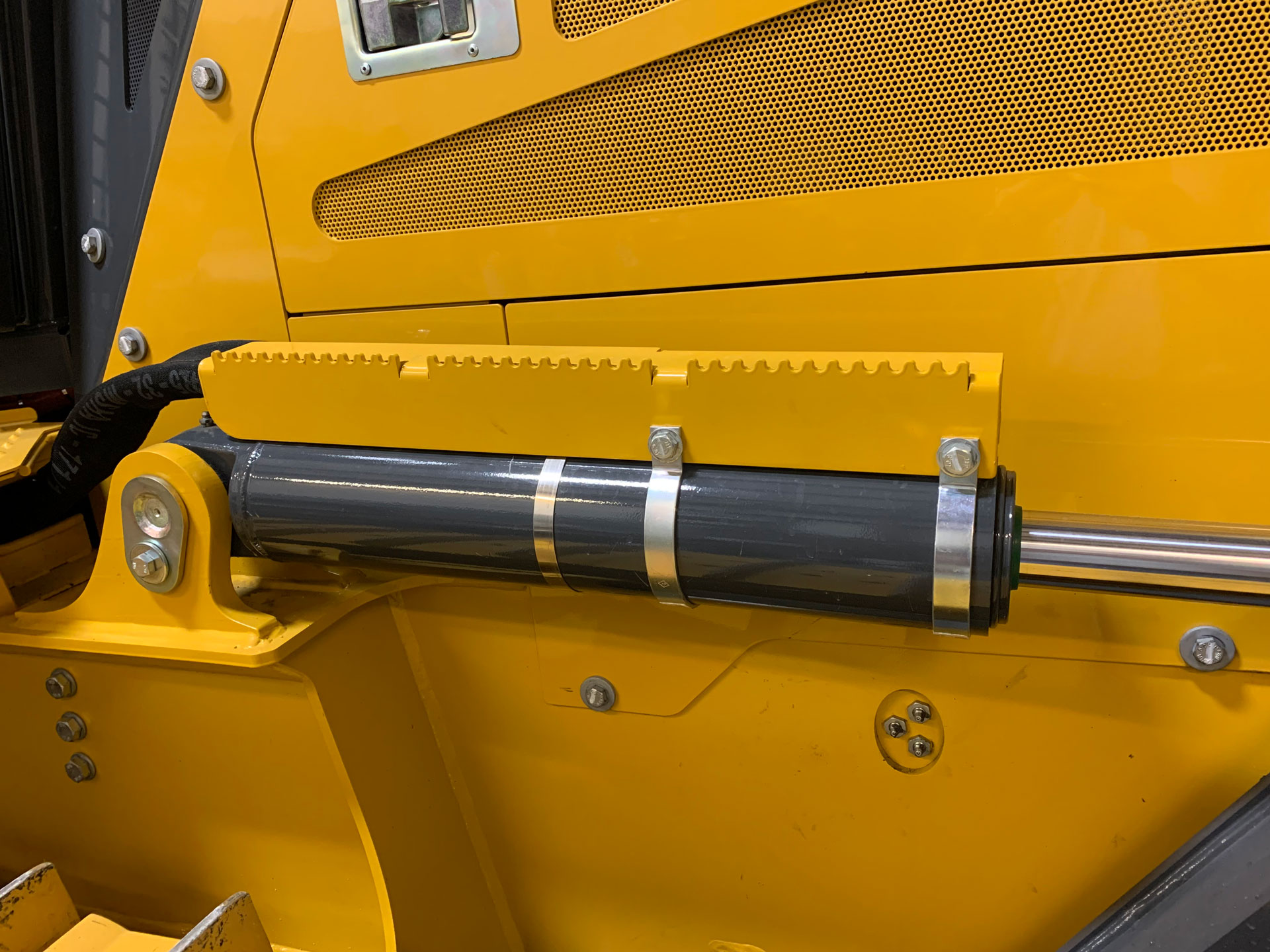

| 706213 | Lift Cylinder Hose Guards | 700 | 20 | 2 | | Login To See Price | Login To Add To Quote |
| 706244 | Intake Guard, Turbine Type, Engine | 700 | 18 | 2 | | Login To See Price | Login To Add To Quote |

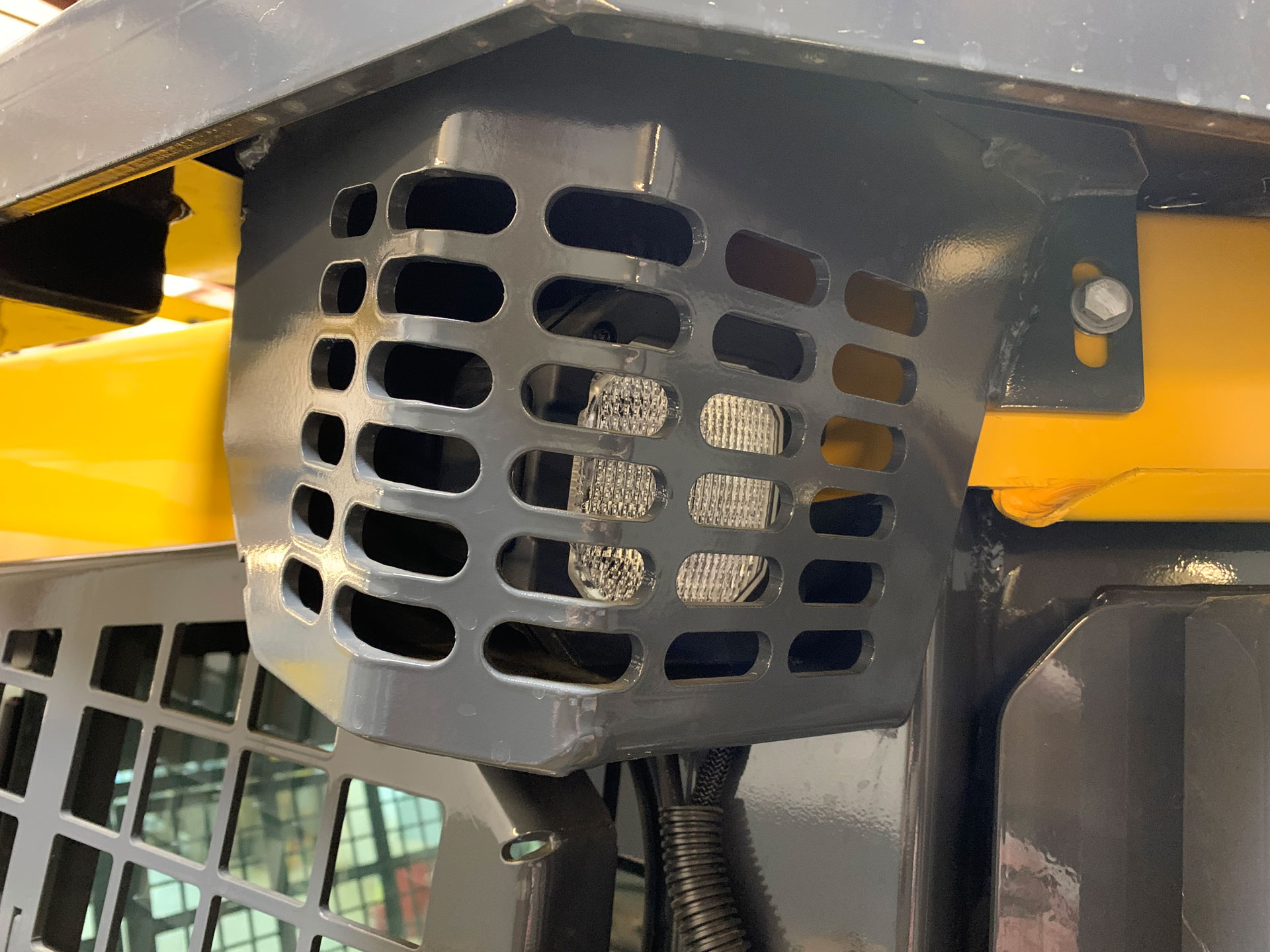

| 706280 | Work Light Guards, Front Outer Only Note: Requires 706276 Limb Risers |
700 | 22 | 2 | | Login To See Price | Login To Add To Quote |

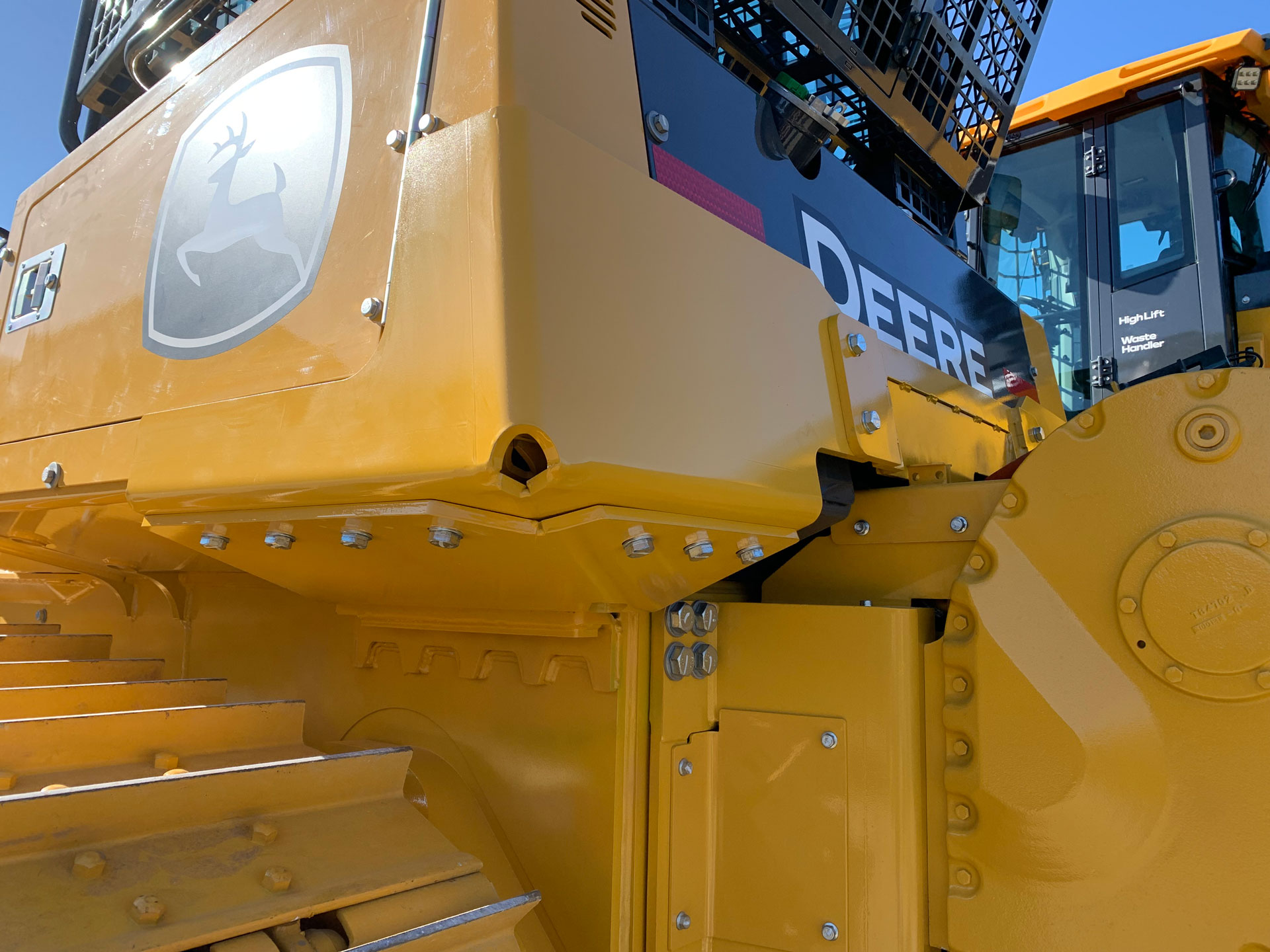

| BYT12272 | Tank Guard, GR#706240) Note: Works with JD winch or ripper |
700 | 400 | 6 | | Login To See Price | Login To Add To Quote |
| Last Update: January 2026 | |||||||
