L Crawler Dozer Products
| Part Number | Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions | List Price DS25 |
|---|---|---|---|---|---|---|
| "AT & BYT" part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | ||||||
| Limb Riser (Sweeps) | ||||||
| 706282 | Limb Risers, Arched, Cab Note: For Vertical Lift Cylinders Only |
750 | 580 | 4 |  |
Login To See Price |
| 706277 | Limb Risers, Arched, Cab Note: For Horizonal Lift Cylinders Only |
750 | 582 | 4 | |
Login To See Price |
| Operator Rear Screen | ||||||

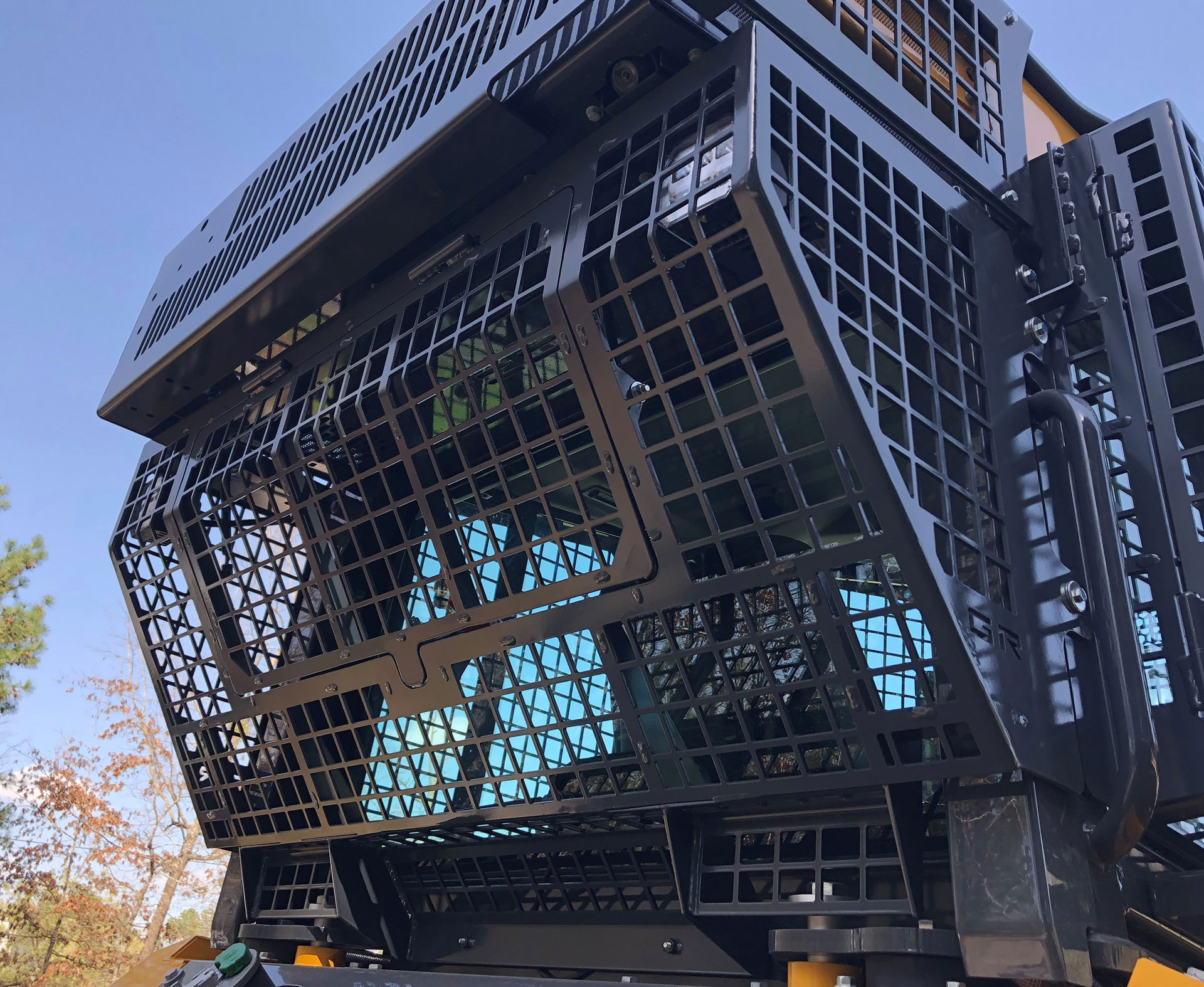

| 706251 | Rear Screen, Cab Note: Includes Hinges and Slam Latch System |
750 | 120 | 2 | |
Login To See Price |
| Operator Side Screens | ||||||

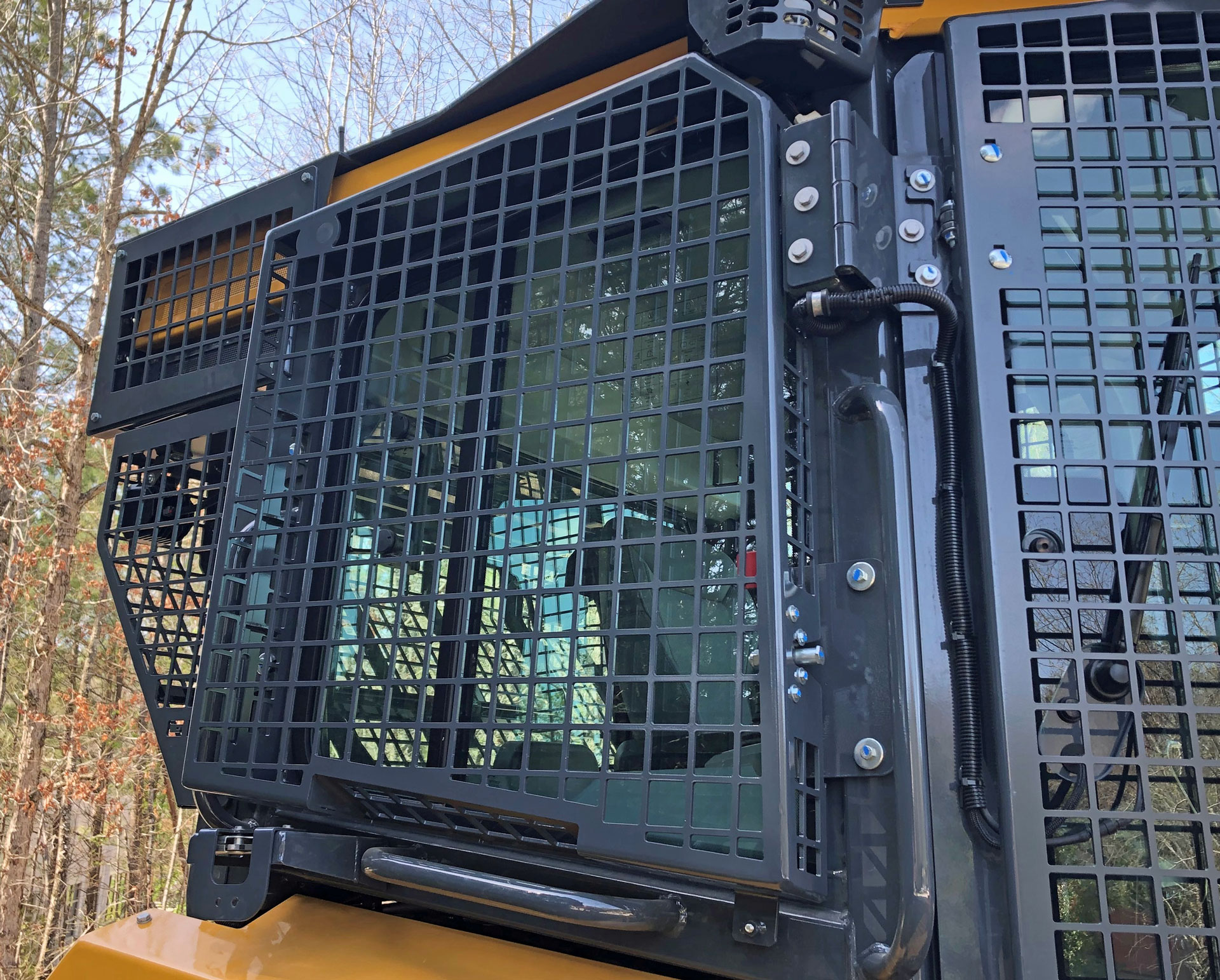

| 706253 | Side Screens, Cab Note: Includes Hinges and Slam Latch System |
750 | 110 | 3 | |
Login To See Price |
| Operator Doors and Front Screen | ||||||

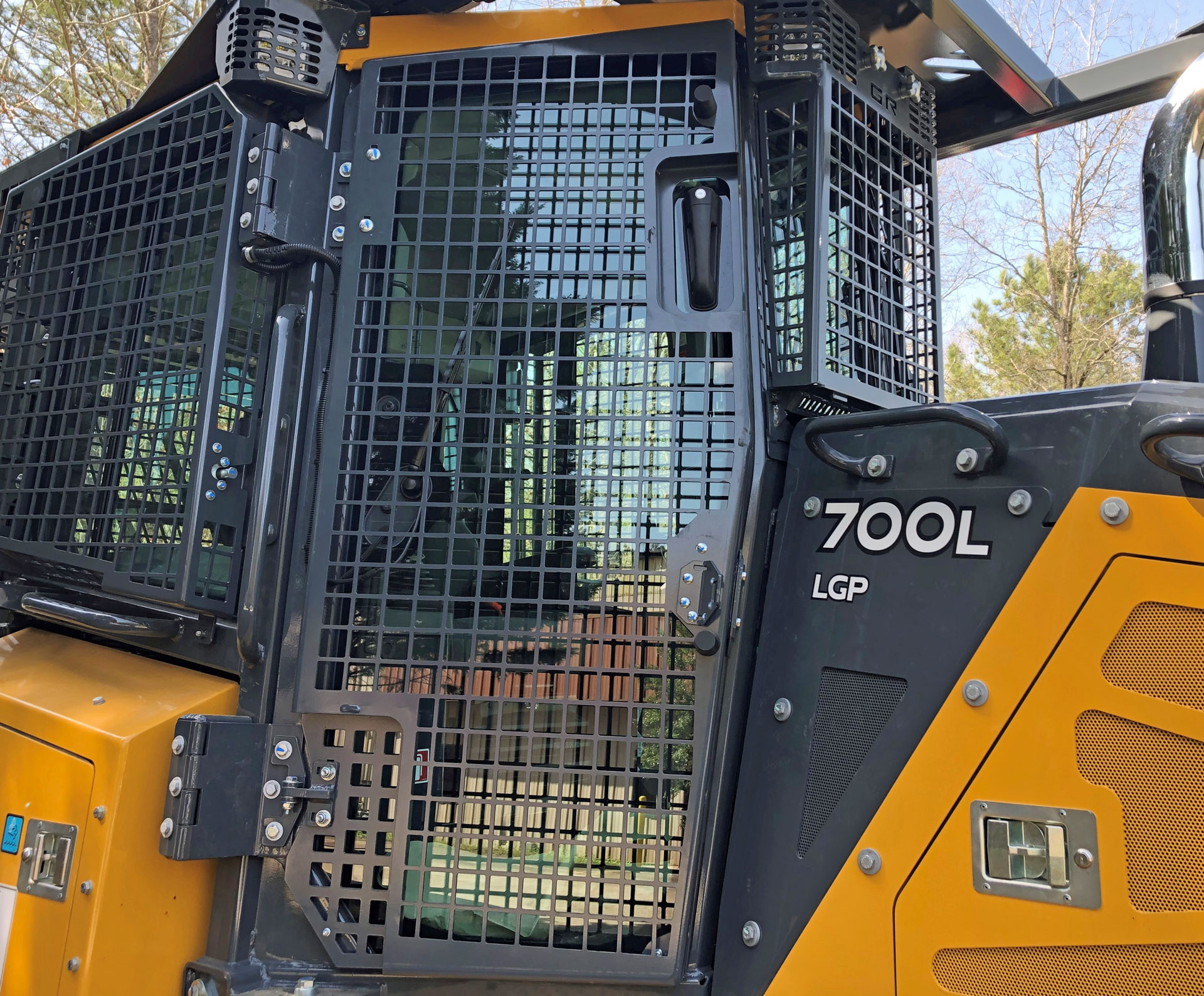

| 706252 | Doors and Front Screen, Cab Note: Includes Hinges, Slam Latch System and Outer Front Work Light Guards |
750 | 200 | 4 | |
Login To See Price |
| Lift Cylinder Guards | ||||||
| ** PAY CLOSE ATTENTION TO MACHINE CONFIGURATION WHEN ORDERING? ** | ||||||

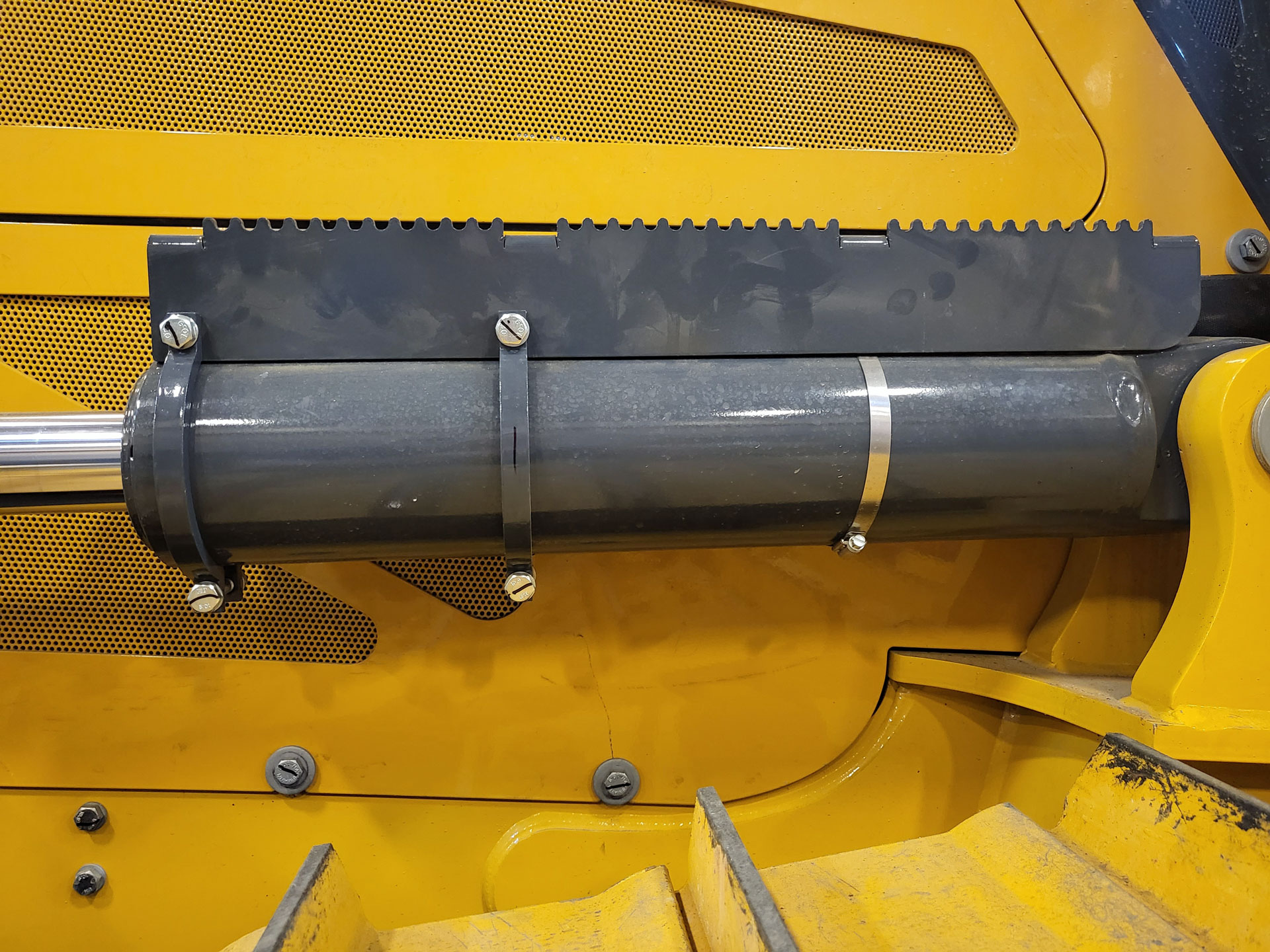

| 706221 | Lift Cylinder Hose Guard Note: PAT w Horizonal Lift Cylinders |
750 | 26 | 2 | |
Login To See Price |
| 706222 | Lift Cylinder Hose Guard Note: OSD w Vertical Lift Cylinders |
750 | 141 | 4 | |
Login To See Price |

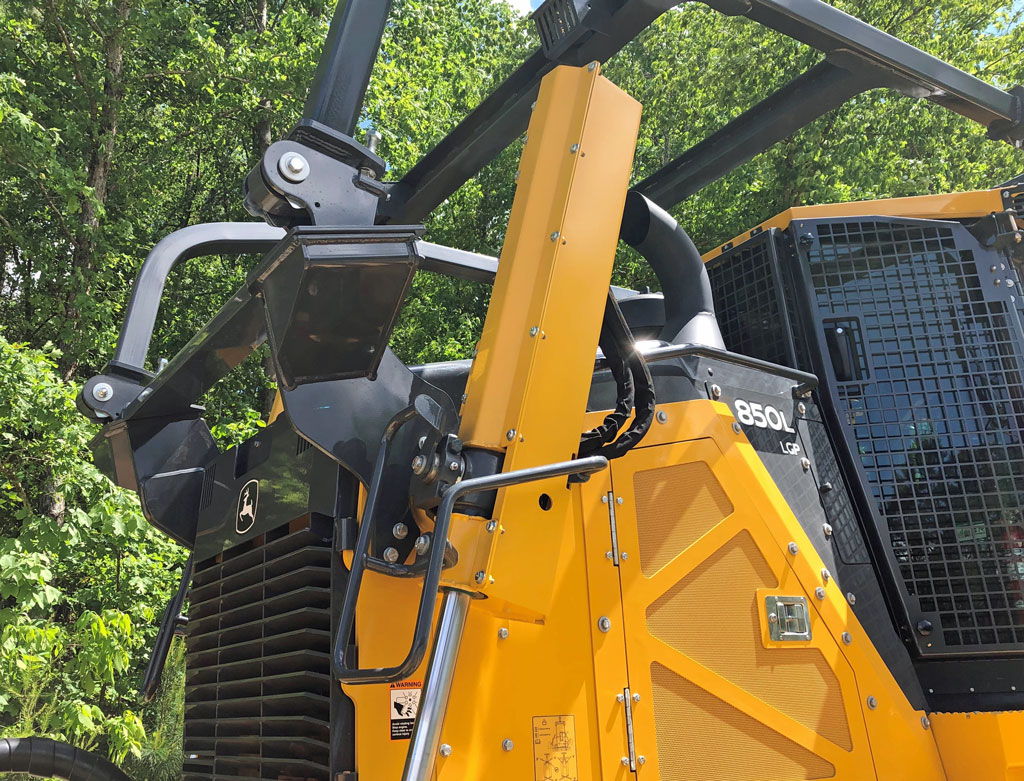

| 706203 | Lift Cylinder Hose Guard Note: PAT Blade |
850 | 152 | 4 | |
Login To See Price |
| 706185 | Lift Cylinder Hose Guard Note: Outside C Frame |
850 | 178 | 4 | |
Login To See Price |
| Brush Guards, Trash Racks / Chip Racks | ||||||
| 706338 | Blade Brush Guard, Grille Width Notes: For PAT Blades |
750 PAT |
210 | 5 | |
Login To See Price |
| BYT12442 | Blade Trashrack, (GR#706274) Note: For 128" Semi-U Blade, OSD |
850 XLT | 520 | 6 | |
Login To See Price |
| BYT12444 | Blade Trashrack, (GR#706250) Note: For 141" Sem-U Blade, OSD |
850 WLT | 568 | 6 | |
Login To See Price |
| BYT12443 | Blade Trashrack, (GR#706279) Note: For 146" Straight Blade, PAT |
850 XLT | 432 | 6 | |
Login To See Price |
| BYT12445 | Blade Trashrack, (GR#706285) Note: For 158" Straight Blade, PAT |
850 WLT | 400 | 6 | |
Login To See Price |
| Special Application Attachments | ||||||

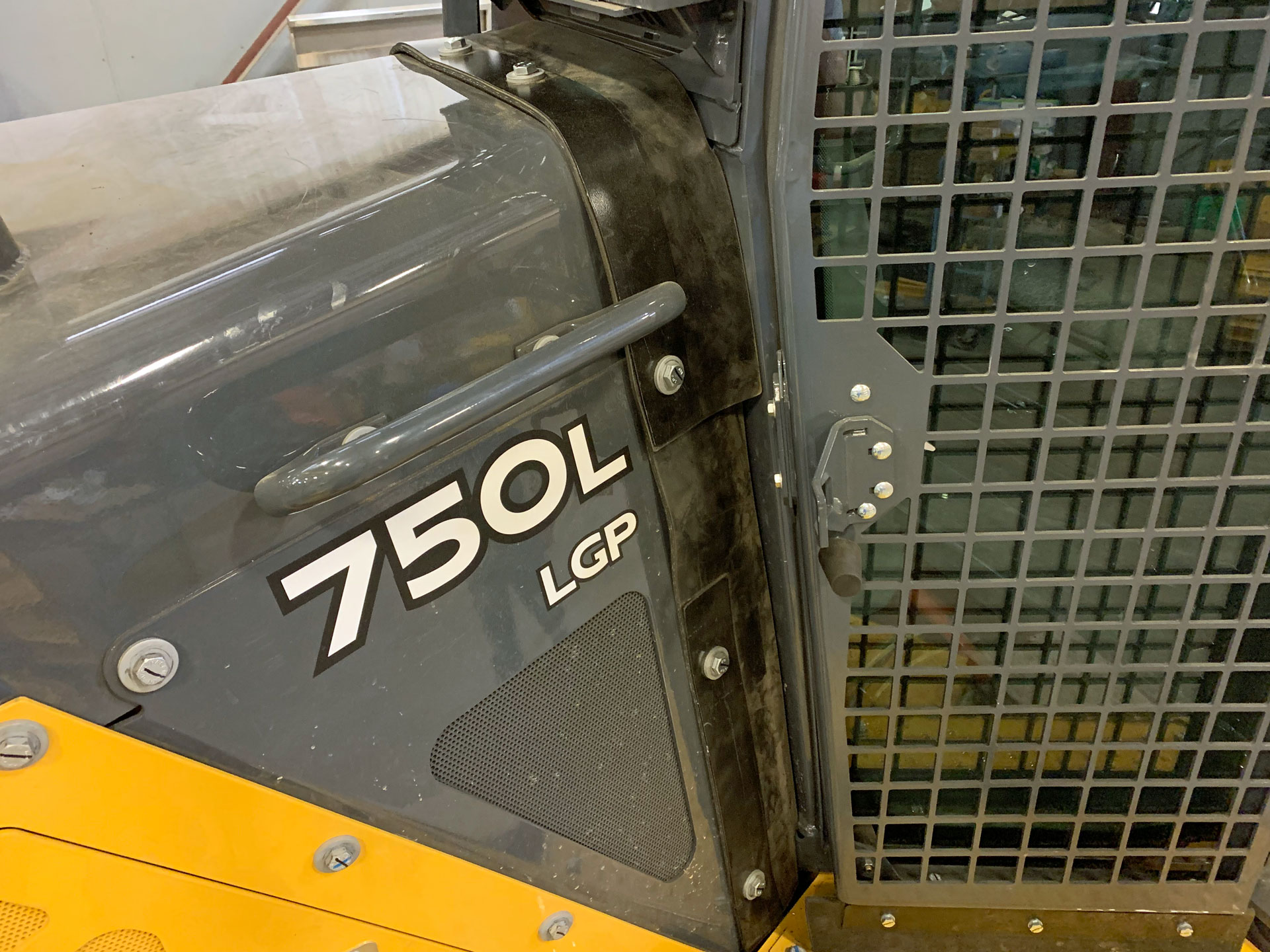

| 706310 | Seal Kit, Hood / Cab Note: Require G.R. Mfg. Door Screens to be Installed |
750 | 19 | 2 | |
Login To See Price |
| 706186 | Seal Kit, Hood, Lower Area, Hood / Cab | 850 | 25 | 3 | |
Login To See Price |
| 706394 | A/C Condensor Guard |
750 | 118 | 2 | |
Login To See Price |
| BYT12273 | Tank Guard, Rear, (GR#706241) | 750 | 500 | 6 | |
Login To See Price |

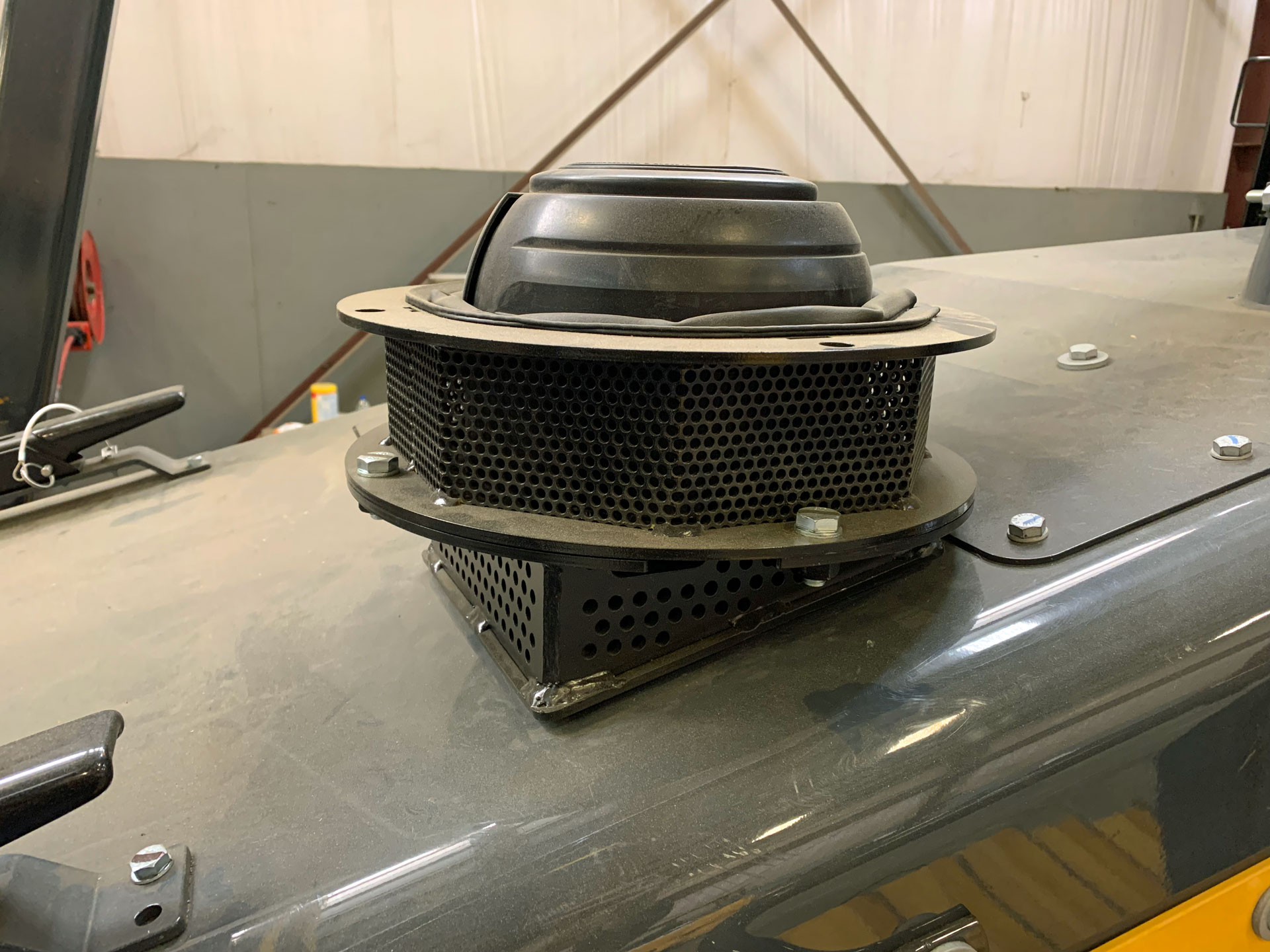

| 706244 | Intake Guard, Turbine Type, Engine | 750 | 18 | 2 | |
Login To See Price |
| 706280 | Front Work Light Guards, Outer Only Note: Requires Limb Risers 706282 or 706277 Included in Door Screen Kit above. |
750 | 22 | 1 | |
Login To See Price |

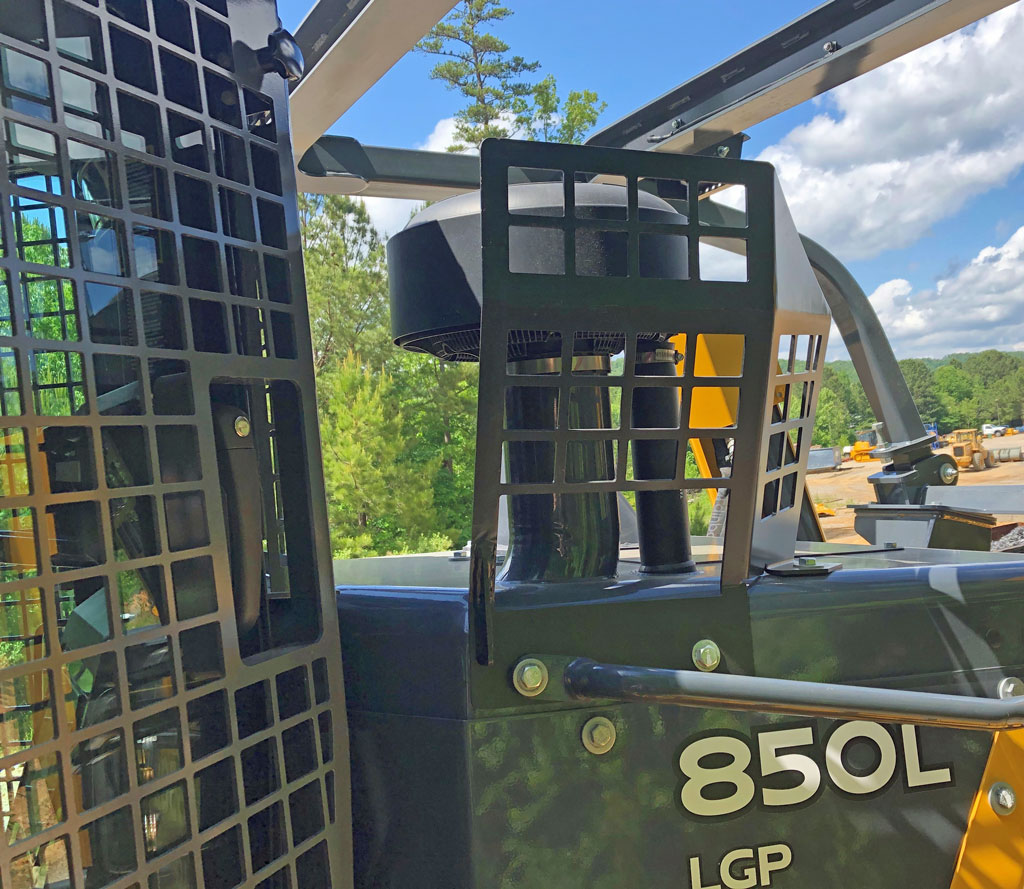

| 706202 | Intake Guard, Engine Air | 850 | 14 | 2 | |
Login To See Price |
Last Update: October 2022
