L Series Wheel Loader Products
| Part Number | Kit Descriptions | Will fit these machines | Shipping Weight - Lbs | Average Install Time - Hrs | Installation Instructions | List Price DS30 | |
|---|---|---|---|---|---|---|---|
| " BYT" part number kits must be ordered through the Deere CGI/COMAR order system. All others must be ordered directly from G.R. Mfg. | |||||||
| Axle Seal Guards | |||||||
| BYT11095 | Axle Seal Guards (GR#706095) |
524 - 544 |
113 | 6 |  | Login To See Price | Login To Add To Quote |

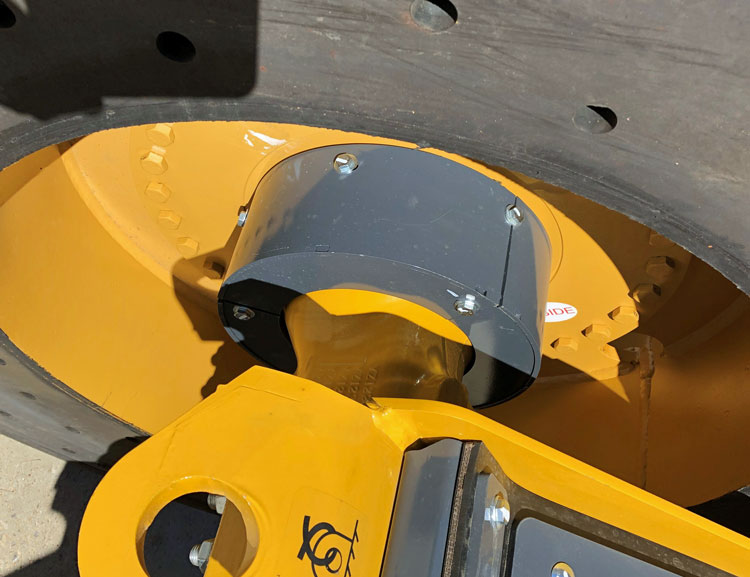

| BYT11086 | Axle Seal Guards (GR#706044) | 624 | 114 | 8 | | Login To See Price | Login To Add To Quote |

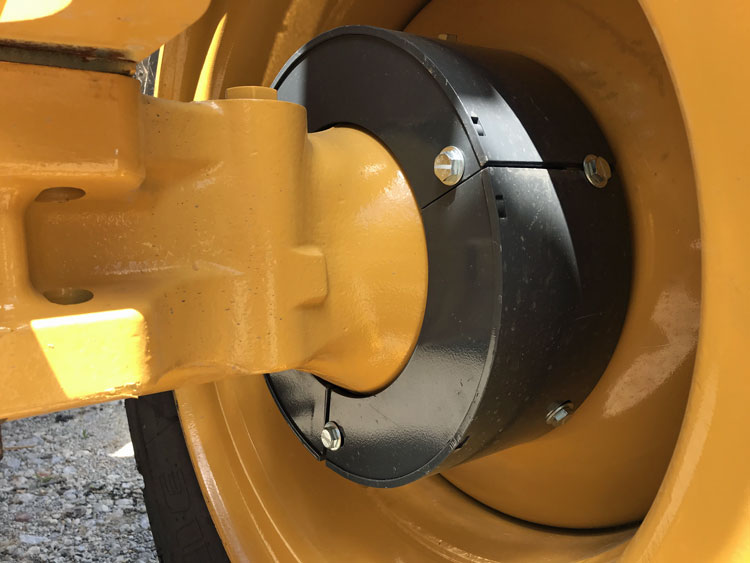

| BYT11780 | Axle Seal Guards (GR#706167) | 644 - 724 |
114 | 8 | | Login To See Price | Login To Add To Quote |
| 706129 | Axle Seal Guards | 744 - 824 |
170 | 10 | | Login To See Price | Login To Add To Quote |

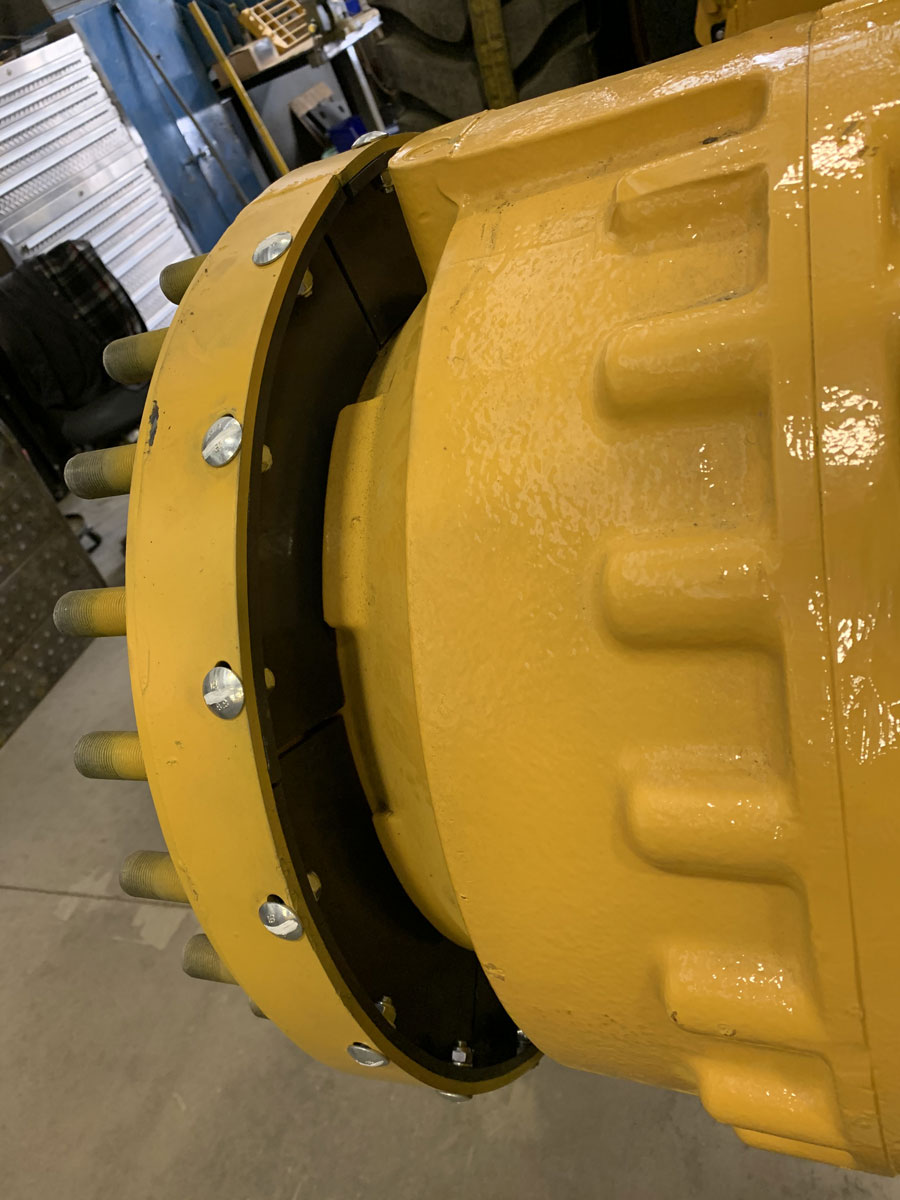

| 706230 | Axle Seal Guards | 844 | 110 | 12 | | Login To See Price | Login To Add To Quote |
| Front Screen Protection | |||||||

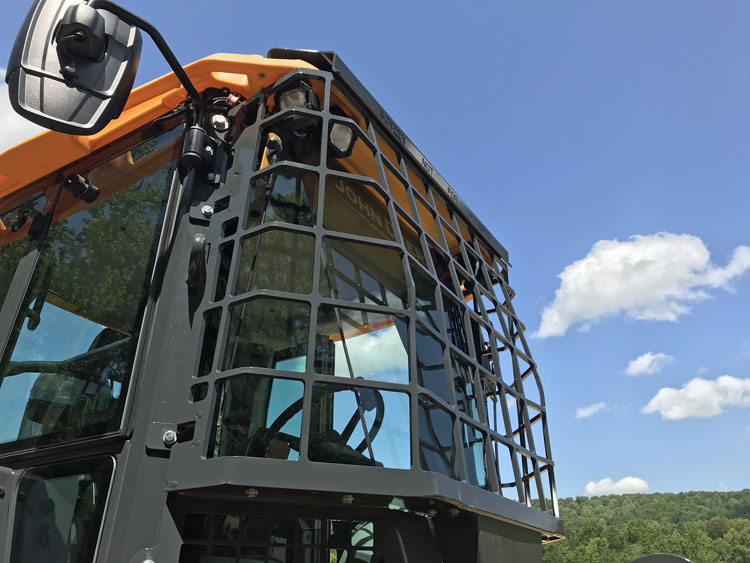

| 706018 |
Operator Front Screen, Large Grid Pattern Notes: Not for forestry applications Fits standard and hi-lift linkages Not compatible with tool carrier |
444 - 724 |
254 | 6 | | Login To See Price | Login To Add To Quote |

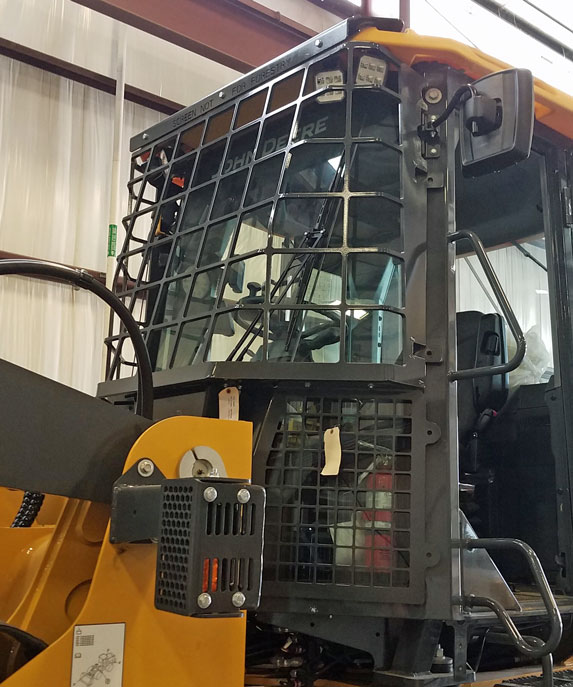

| 706156 | Operator Front Screen, Large Grid Pattern Notes: Not for forestry applications Fits standard and hi-lift linkages |
744 - 844 |
275 | 6 | | Login To See Price | Login To Add To Quote |
| BYT11090 | Operator Front Screen, Forestry (Laser Cut Frame) (GR#706090) Notes: Fits standard and hi-lift z-bar linkages Not compatible with tool carrier Tested to ISO 8084 Standard |
444 - 724 |
248 | 6 | | Login To See Price | Login To Add To Quote |
| 706141 |
Operator Front Screen, Forestry (Laser Cut Frame) Notes: Fits standard and hi-lift z-bar linkages Tested to ISO 8084 Standard |
744 - 844 |
275 | 6 | | Login To See Price | Login To Add To Quote |
| Cab Enclosure | |||||||

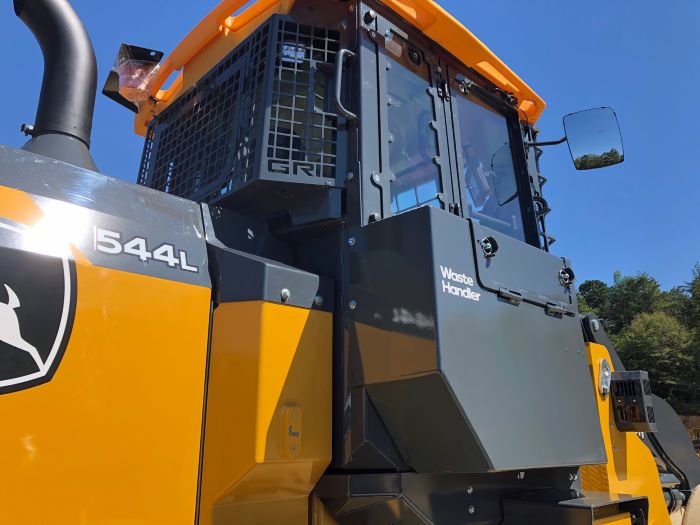

| BYT11091 | Enclosure, Cab (GR#706091) Notes: Polycarbonate side window guards and screen rear window guard Tested to ISO 8084 Standard |
444 - 624 |
322 | 16 | | Login To See Price | Login To Add To Quote |
| BYT12019 | Enclosure, Cab (GR#706171) Notes: Polycarbonate side window guards, screen rear window guard Tested to ISO 8084 Standard |
644 - 724 |
290 | 16 | | Login To See Price | Login To Add To Quote |

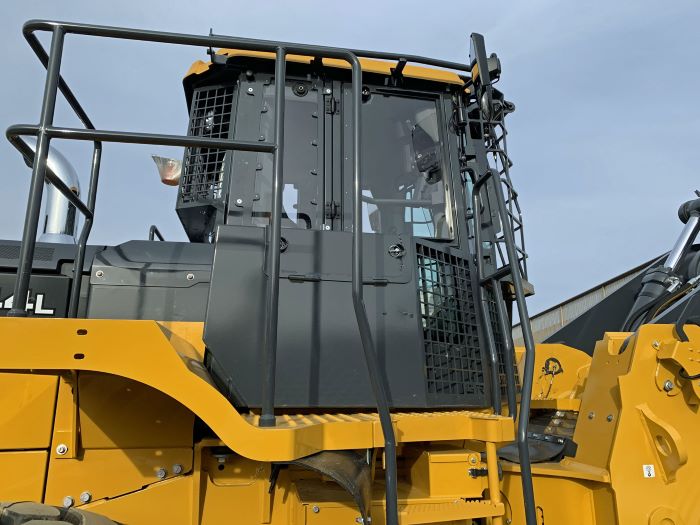

| 706142 | Enclosure, Cab Notes: Polycarbonate side window guards, screen rear window guard Tested to ISO 8084 Standard |
744 - 824 |
340 | 16 | | Login To See Price | Login To Add To Quote |
| 706242 |
Enclosure, Cab Notes: Polycarbonate side window guards, screen rear window guard Tested to ISO 8084 Standard |
844 |
330 | 16 | | Login To See Price | Login To Add To Quote |

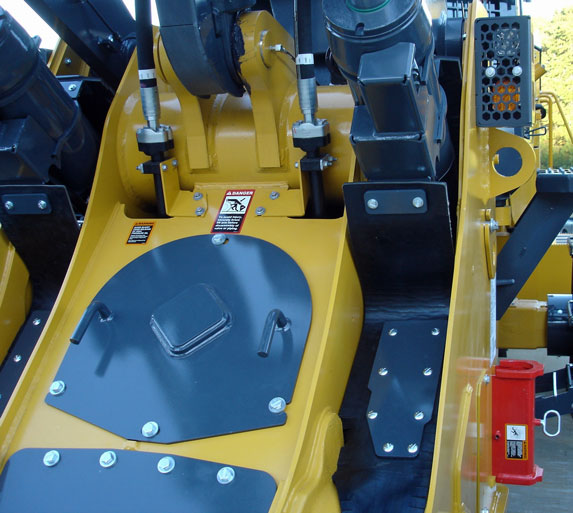

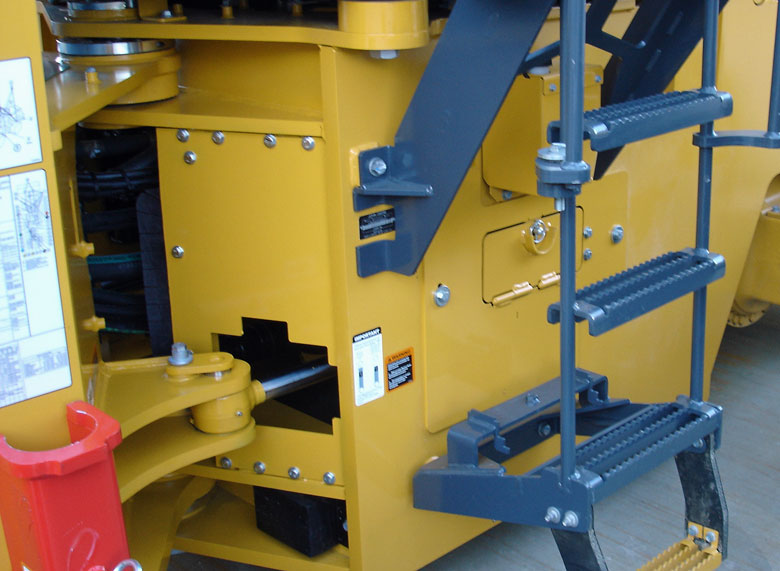

| Articulation Joint/Transmission Side Shield/Loader Frame Guards | |||||||
| BYT11779 | Articulation Joint Guard Kit (GR#706178) Includes:. Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers Note: Not compatible with quick fluid service |
444 | 144 | 6 | | Login To See Price | Login To Add To Quote |
| BYT11094 |
Articulation Joint Guard Kit
(GR#706028) Note: Incl. Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers And not compatible with quick fluid service |
524 - 544 |
234 | 6 | | Login To See Price | Login To Add To Quote |

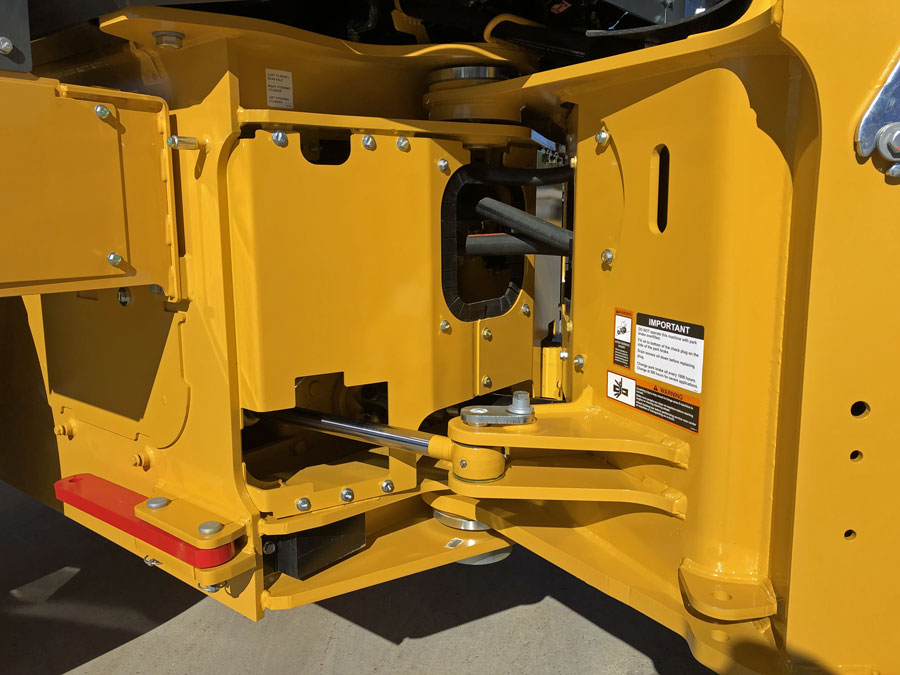

| BYT11085 | Articulation Joint Guard Kit (GR#706086) Includes: Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers Note: Not compatible with quick fluid service |
624 | 186 | 6 | | Login To See Price | Login To Add To Quote |

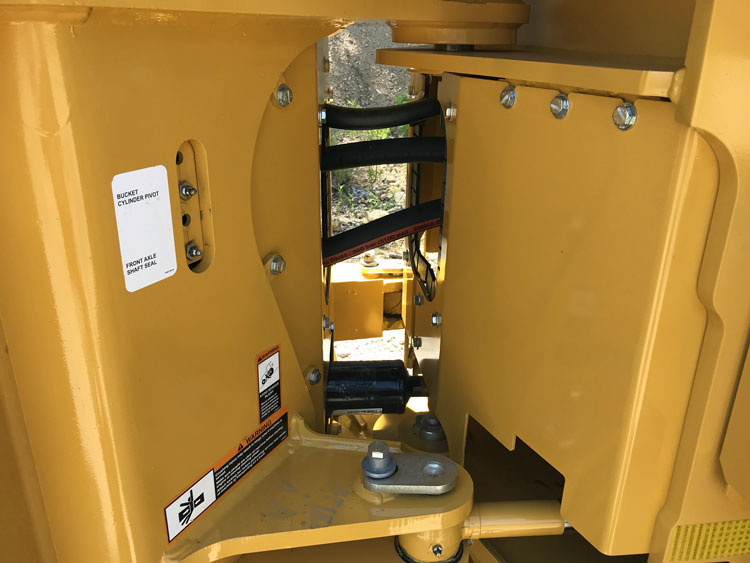

| BYT11778 | Articulation Joint Guard Kit (GR#706166) Includes: Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers Note: Not compatible with quick fluid service |
644 | 194 | 6 | | Login To See Price | Login To Add To Quote |
| BYT12017 | Articulation Joint Guard Kit (GR#706174) Includes: Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers Note: Not compatible with quick fluid service |
724 | 164 | 6 | | Login To See Price | Login To Add To Quote |
| 706137 | Articulation Joint Guard Kit Includes: Art.Joint Guards, Tran. Side Shields and Upper Front Frame Opening Covers Notes: Not compatible with quick fluid service |
744 - 824 |
200 | 6 | | Login To See Price | Login To Add To Quote |

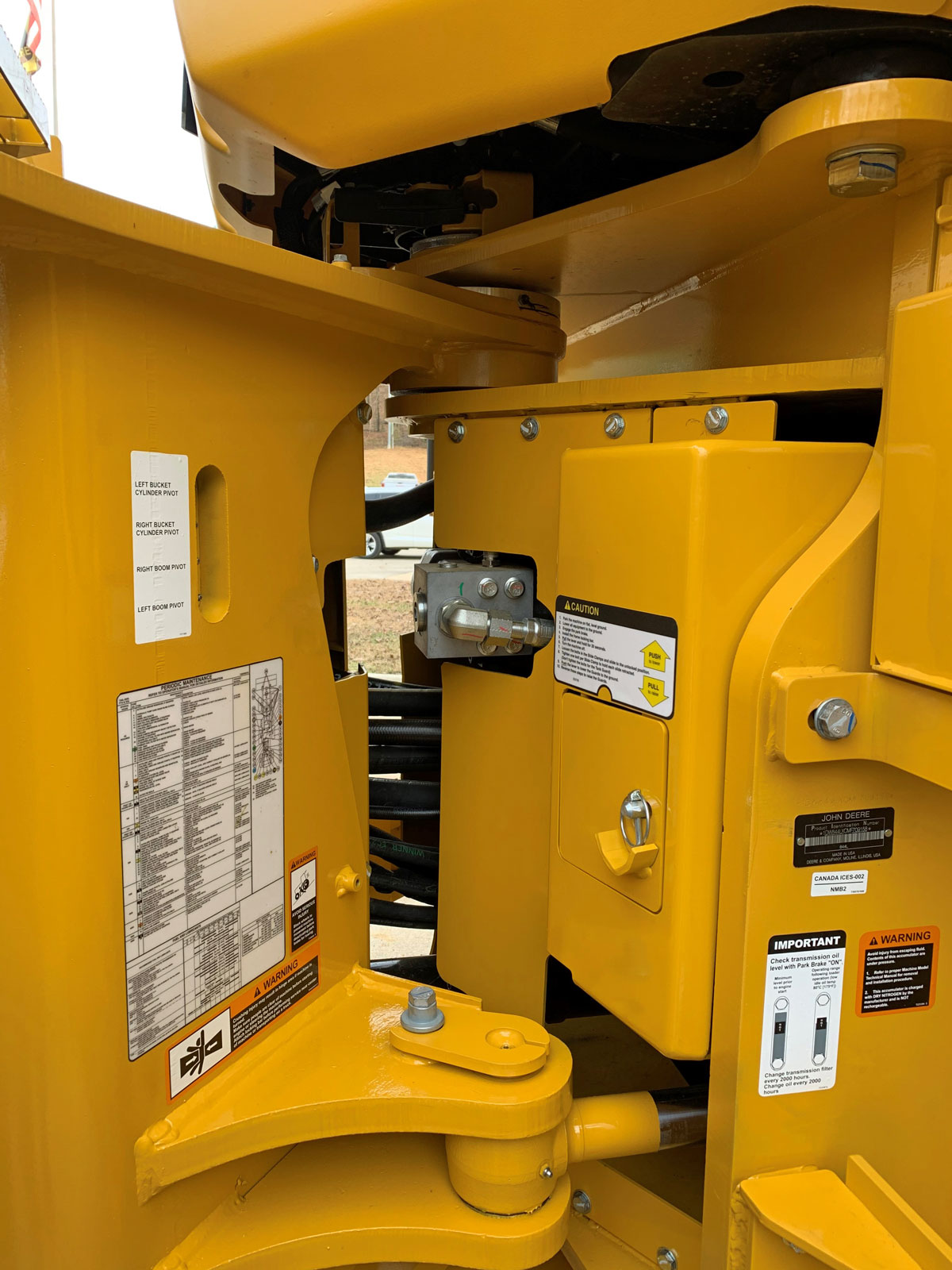

| 706243 | Articulation Joint Guard Kit Includes: Art.Joint Guards and Tran. Side Shields Notes: Not compatible with quick fluid service. Does not include Upper Front Opening Cover |
844 | 230 | 6 | | Login To See Price | Login To Add To Quote |
| Extreme Service Bottom Guards | |||||||
| 706283 | Bottom Guards, Extreme Service, Hinged, Hydraulic | 524 | 745 | 14 | | Login To See Price | Login To Add To Quote |
| BYT11096 | Bottom Guards, Extreme Service, Hinged, Hydraulic (GR#706096) | 544 | 745 | 14 | | Login To See Price | Login To Add To Quote |
| BYT11087 | Bottom Guards, Extreme Service, Hinged, Hydraulic (GR#706087) |
624 | 754 | 16 | | Login To See Price | Login To Add To Quote |
| BYT11782 | Bottom Guards, Extreme Service, Hinged, Hydraulic (GR#706168) | 644 - 724 |
851 | 16 | | Login To See Price | Login To Add To Quote |
706138 |
Bottom Guards, Extreme Service, Hinged, Hydraulic |
744 - 824 |
902 | 16 | | Login To See Price | Login To Add To Quote |
| 706287 | Bottom Guards, Extreme Service, Hinged, Hydraulic | 844 | 1450 | 16 | | Login To See Price | Login To Add To Quote |

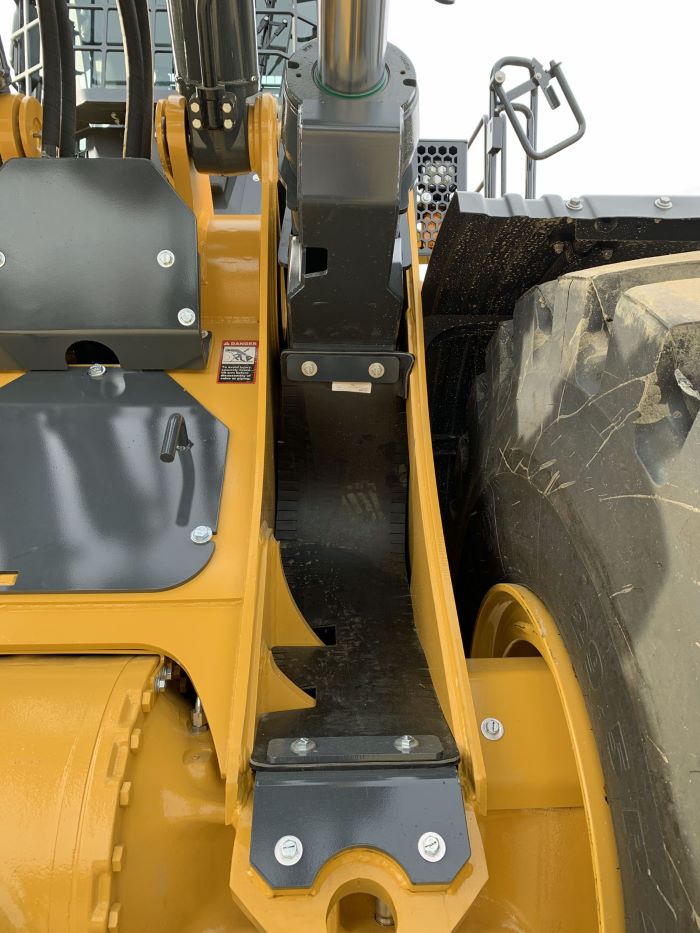

| Boom Cylinder Hydraulic Lines & Cavity Guards | |||||||
| BYT11787 | Boom Cylinder Hydraulic Line & Cavity Guards
(GR#706182) Notes: Works with ride control and front fenders |
444 | 194 | 6 | | Login To See Price | Login To Add To Quote |
| BYT11098 |
Boom Cylinder Hydraulic Line & Cavity Guards (GR#706023)
Notes: Works with ride control and front fenders |
524 - 544 | 220 | 6 | | Login To See Price | Login To Add To Quote |

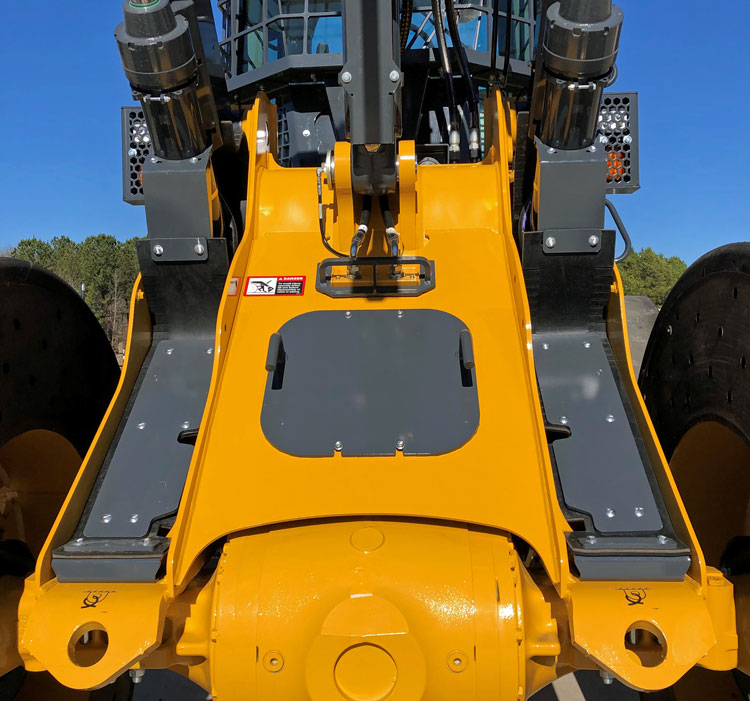

| BYT11089 | Boom Cylinder Hydraulic Line & Cavity Guards (GR#706089) Notes: Works with ride control and front fenders |
624 | 250 | 6 | | Login To See Price | Login To Add To Quote |
| BYT11786 | Boom Cylinder Hydraulic Line & Cavity Guards (GR#706170) Notes: Works with ride control and front fenders |
644 - 724 |
250 | 6 | | Login To See Price | Login To Add To Quote |
| 706140 | Boom Cylinder Hydraulic Line & Cavity Guards Notes: Works with ride control and front fenders |
744 - 824 |
190 | 7 | | Login To See Price | Login To Add To Quote |
| 706249 | Boom Cylinder Hydraulic Line & Cavity Guards (GR#706249) Notes: Works with ride control and front fenders |
844 | 314 | 8 | | Login To See Price | Login To Add To Quote |
| Rear Tire Deflectors | |||||||
| BYT11102 |
Rear Tire Deflectors (GR#706098)
Note: Will not work with any factory rear hitch or fast fuel fill option. |
444 - 544 |
1185 | 6 | | Login To See Price | Login To Add To Quote |

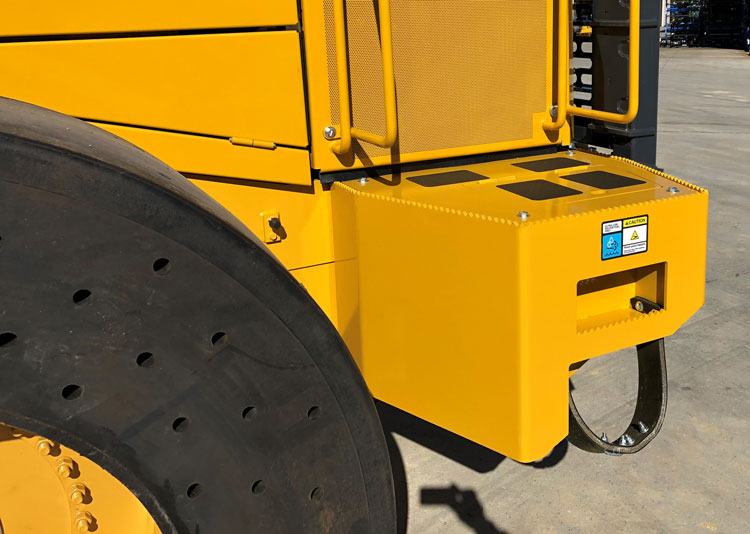

| BYT11093 | Rear Tire Deflectors (GR#706093) Note: Will not work with any factory rear hitch or fast fuel filloption. |
624 | 1150 | 6 | | Login To See Price | Login To Add To Quote |

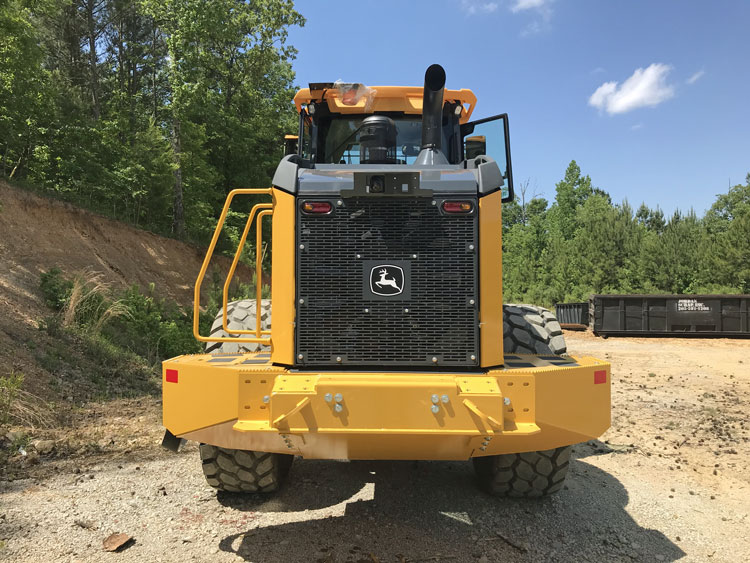

| BYT11788 | Rear Tire Deflectors (GR#706172) Note: Will not work with any factory rear hitch or fast fuel fill option. |
644 - 724 |
1470 | 7 | | Login To See Price | Login To Add To Quote |
| 706132 | Rear Tire Deflectors Note: Will not work with any factory rear hitch or fast fuel fill option. |
744 - 824 |
1675 | 7 | | Login To See Price | Login To Add To Quote |
| 706161 | Extensions, Rear Tire Deflectors Note: Requires bumper with deflectors |
744 - 824 |
106 | 1 | | Login To See Price | Login To Add To Quote |

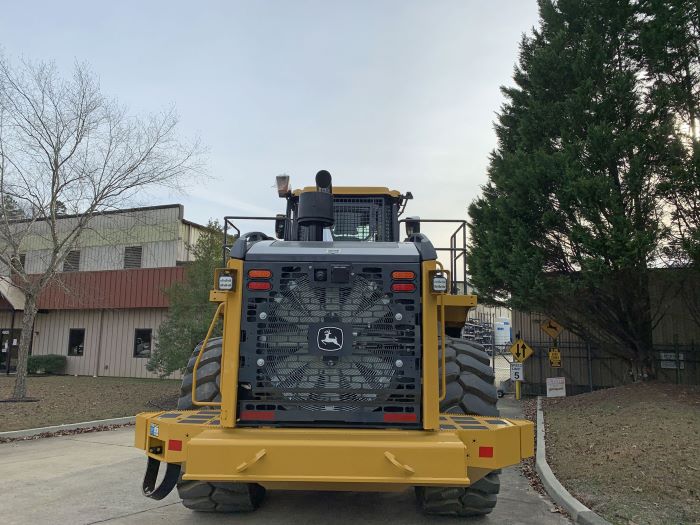

| 706231 | Rear Tire Deflectors Note: Will not work with any factory rear hitch or fast fuel fill option. |
844 | 1860 | 8 | | Login To See Price | Login To Add To Quote |
| Special Application Attachments | |||||||
| 706126 | Strobe Light, Upper Rear Cab Mount | 524 - 624 |
14 | 3 | | Login To See Price | Login To Add To Quote |
| 706160 | Strobe Light, Upper Rear Cab Mount | 744 - 844 |
12 | 3 | | Login To See Price | Login To Add To Quote |

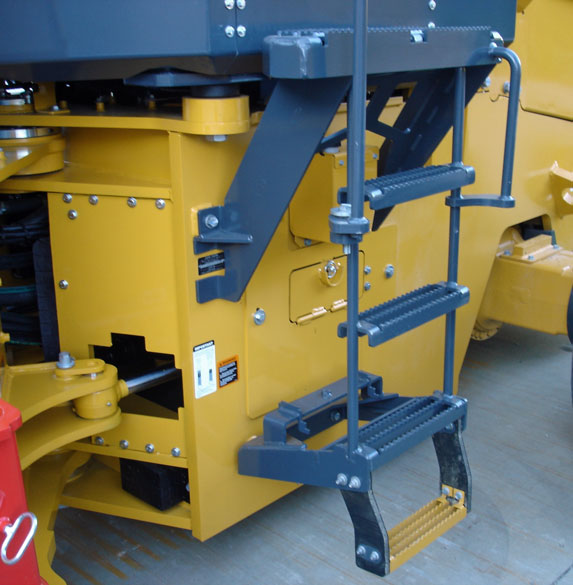

| BYT11097 | Step, Cab Entry, Heavy Duty (GR#706097) | 524 - 544 |
98 | 3 | | Login To See Price | Login To Add To Quote |

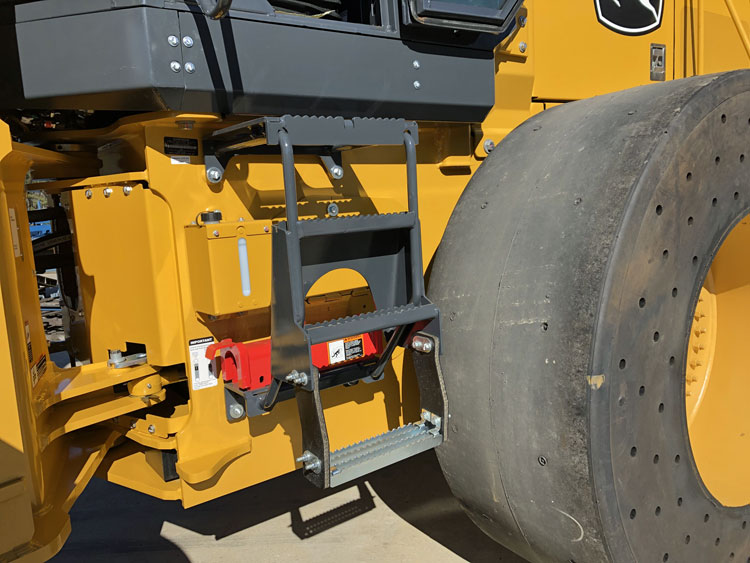

| BYT11088 | Step, Cab Entry, Heavy Duty (GR#706088) | 624 | 98 | 3 | | Login To See Price | Login To Add To Quote |

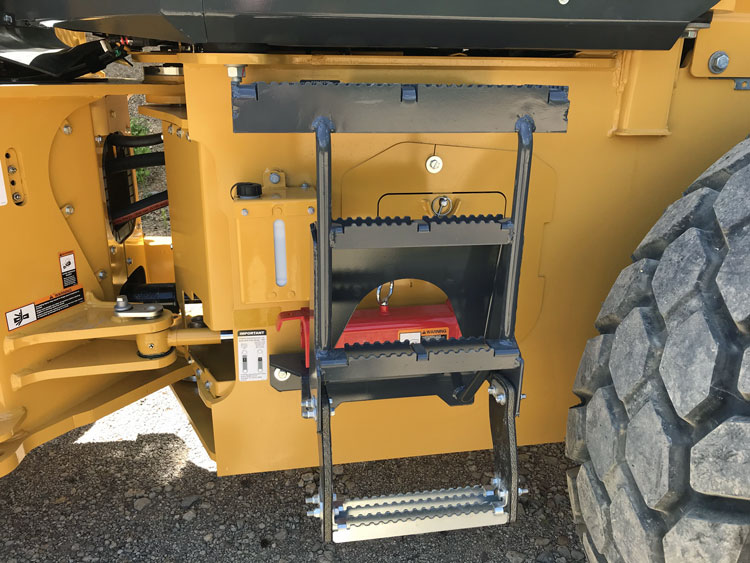

| BYT11784 | Step, Cab Entry, Heavy Duty (GR#706169) | 644 | 125 | 3 | | Login To See Price | Login To Add To Quote |
| BYT12018 | Step, Cab Entry, Heavy Duty (GR#706175) | 724 | 182 | 2 | | Login To See Price | Login To Add To Quote |
| 706139 | Step, Cab Entry, Heavy Duty | 744 - 824 |
218 | 3 | | Login To See Price | Login To Add To Quote |

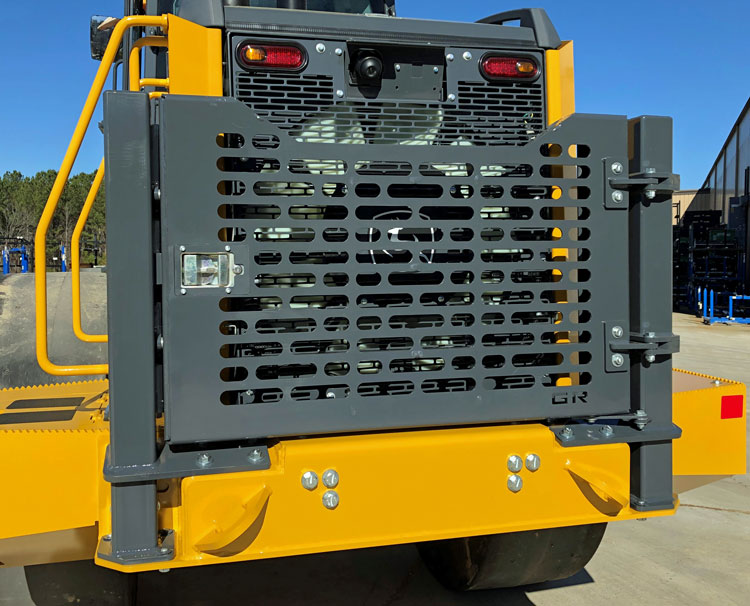

| BYT11092 | Grille Guard, Rear (GR#706092) Note: Requires rear Bumper with Deflector kit |
444 - 724 |
370 | 4 | | Login To See Price | Login To Add To Quote |

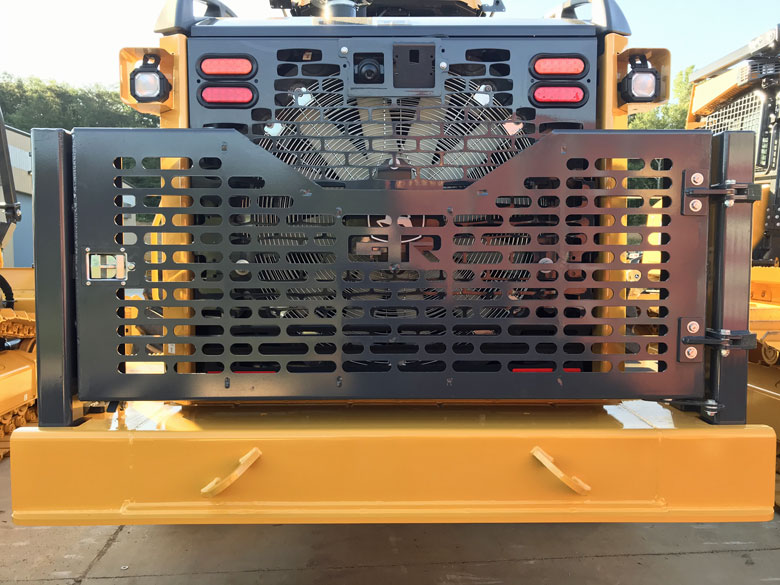

| BYT11353 | Grille Guard, Rear (GR#706148) Note: Requires Rear Deflector kit GR#706132 |
744 - 824 |
898 | 5 | | Login To See Price | Login To Add To Quote |

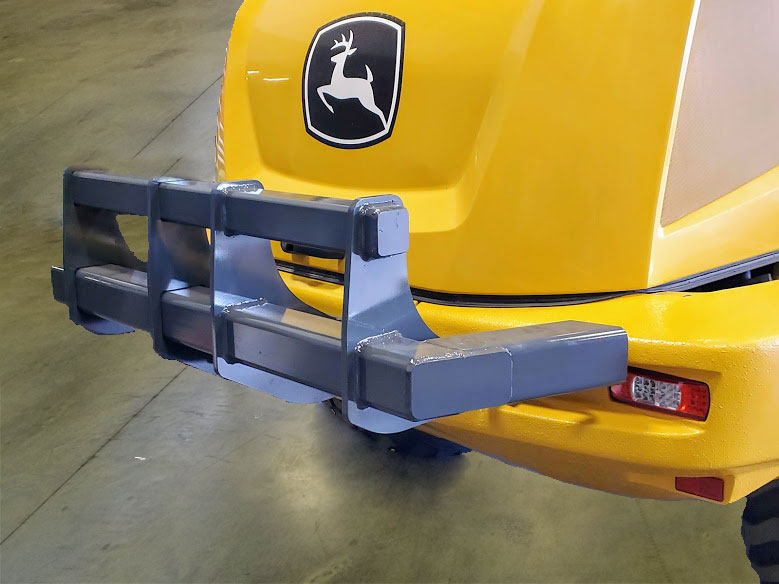

| 706187 | Guard, Rear Hood / Bumper | 324 | 250 | 4 | | Login To See Price | Login To Add To Quote |
| 706158 | Guard, Fuel Tank (GR#706158) | 324 | 86 | 3 | | Login To See Price | Login To Add To Quote |
| BYT11020 | Guard, Fuel Tank (GR#706050) | 344 | 146 | 3 | | Login To See Price | Login To Add To Quote |
Last Update: January 2026
